edelkrone Controller + Wired Signal Hub
edelkrone Controller
If you prefer wired connections and if you will be using only the keyposes the edelkrone Controller is the ideal choice.

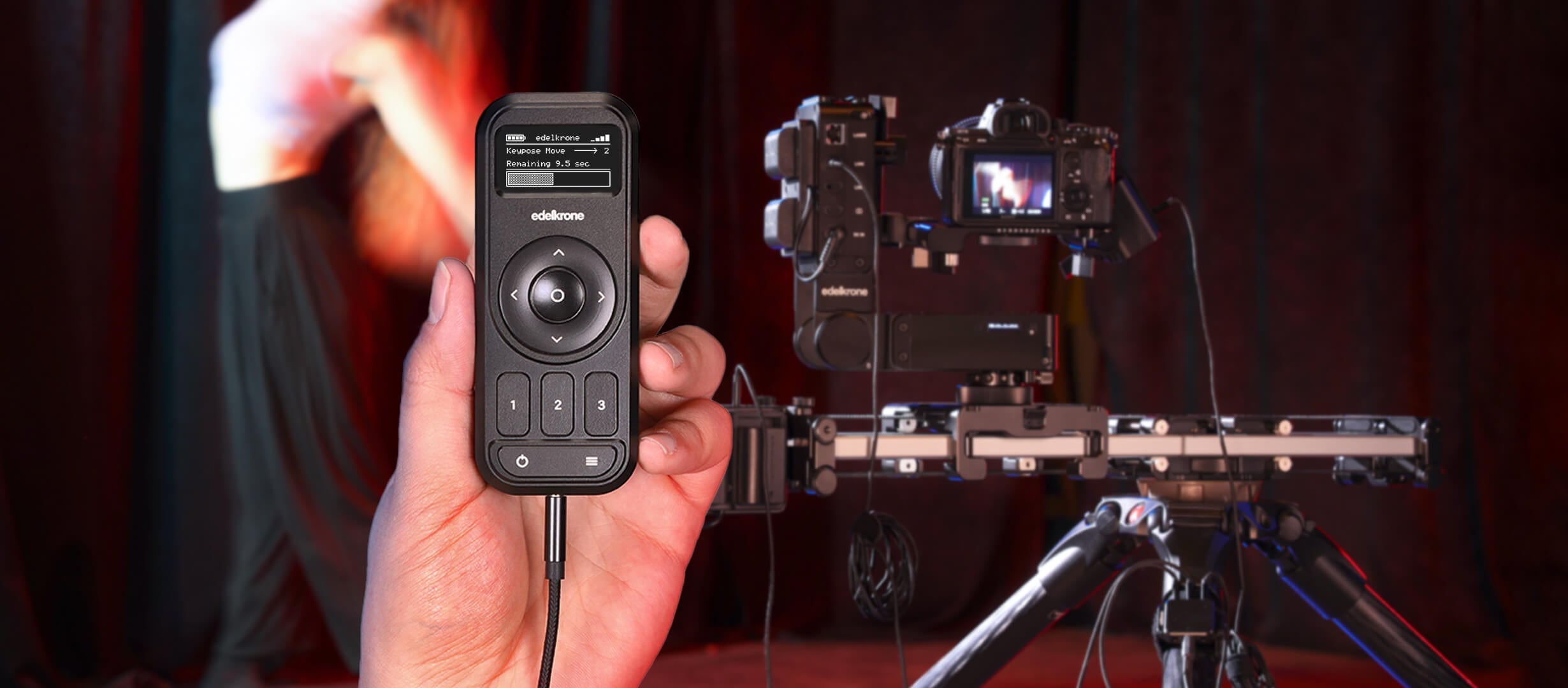

Reliable results in demanding settings
Fully Wired Connection
Controller for edelkrone Moco works seamlessly with Wired Signal Hub for edelkrone Moco (included) to provide a fully wired connection for your edelkrone motion control systems. This is perfect for environments with high wireless interference, ensuring a stable connection between your edelkrone controller and devices.
Hub Included
edelkrone Controller includes the Wired Signal Hub. The hub comes with the necessary cables, and it allows you to interconnect all devices that have link ports and edelkrone Controller together.
Entire edelkrone ecosystem at your fingertips
edelkrone Controller works with any edelkrone motion control system including sliders, jibs, heads, dollies and combinations.
Navigation Pad
Select button
Keypose buttons
Menu button
Link port
Simple & Fast
Keypose Ready
Controller for edelkrone Moco does not include all the features of edelkrone App. It has the most used keypose feature. You can use the navigation pad to adjust speed, acceleration, and any axis of your edelkrone devices including slide, swing, pan, tilt, and focus.
Simply Set Desired Motions
There are three keypose buttons on the Controller. You can use the navigation pad to adjust the position of your edelkrone devices. Then, just press & hold a keypose button to save it.
Even Faster with Hand-Controlled Devices
edelkrone devices with hand-control ability (such as SliderPLUS, JibONE, and HeadPLUS) are even quicker to program with the Controller. Just move the device into position by hand, and press & hold a keypose button to save it instantly.
Works with 2 x AA Batteries
Controller for edelkrone Moco works 10+ hours of continuous wireless use, and 23+ hours with a wired connection when paired with Wired Signal Hub for edelkrone Moco. Controller for edelkrone Moco's extended battery life is long enough for most productions, but even if the batteries run out, your programmed motions are kept saved to be recalled when batteries are replaced, allowing you to resume where you have left off.

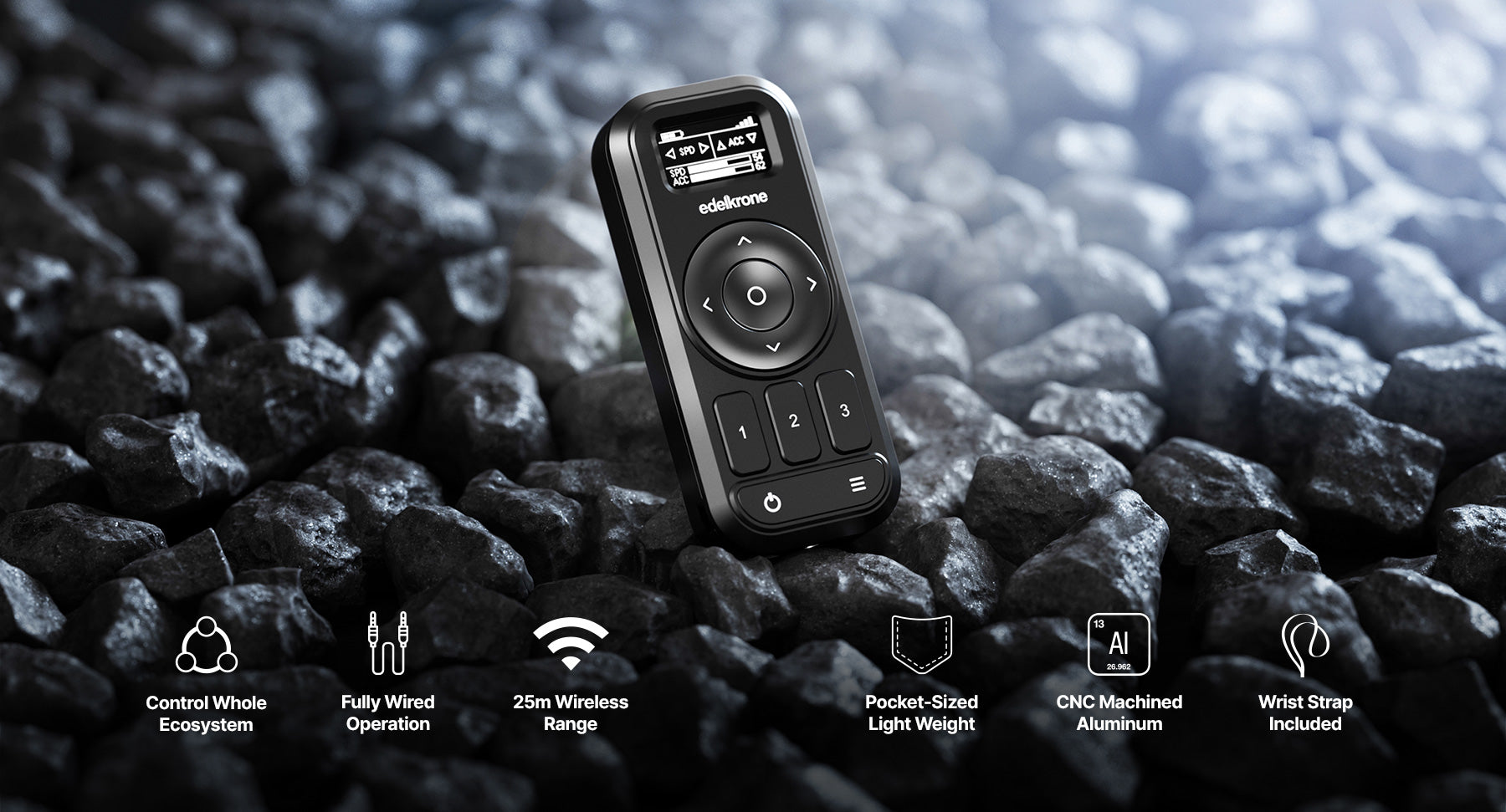

Compact & Durable
Controller for edelkrone Moco is made of CNC machined aluminum for lifetime durability, and comes with a larger screen compared to the previous generation, while remaining as light as a smartphone, and small enough to fit in your pocket.
Effortless Time-Lapse Programming
Select keyposes for the start and end positions of your time-lapse. Fine-tune with customizable durations, shutter speeds, and intervals.
Tech specs
V1
V2
Controller for edelkrone Moco, Hand strap
Controller for edelkrone Moco, hand strap
Wired Signal Hub for edelkrone Moco, x5 1.5m 3.5mm to 3.5mm Link Cable
(L x W x H) 3.93 x 1.69 x 0.78 in (100 x 43 x 20 mm)
(L x W x H) 4.33 x 1.77 x 0.9 in (110 x 45 x 23 mm)
3.52 oz. (100 gr)
3.98 oz. (113 gr.)
x2 AAA batteries (Batteries not included)
x2 AA batteries (Batteries not included)
4.5 hours continuous operation (with 1100 mAh rechargeable x2 AAA batteries)
11 hrs. wireless and 23 hrs. wired with x2 2800 mAh rechargeable AA batteries, 9 hrs. wireless and 28 hrs. wired with x2 alkaline AA batteries, 19 hrs. wireless and 50 hrs. wired with x2 lithium AA batteries.
Up to 82 ft. (25m.)
Up to 82 ft. (25 m)
Motor Module, JibONE, SliderONE v2, HeadONE, Pan Module, HeadPLUS v2, Focus/Zoom Module, DollyONE, DollyPLUS.
Motor Module, JibONE v1 / v2, SliderONE, HeadONE, Pan Module, HeadPLUS v2, Focus/Zoom Module, DollyONE, DollyPLUS.
Motor Module, JibONE v2, Pan Module, HeadPLUS v2, Focus/Zoom Module
3.5 mm (Link cable sold separately)
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection.
CNC machined aluminum and stainless steel components
CNC machined aluminum and stainless steel components.
